Superior-Flexibility 30kg Medium-Payload Industrial Robot for Handling

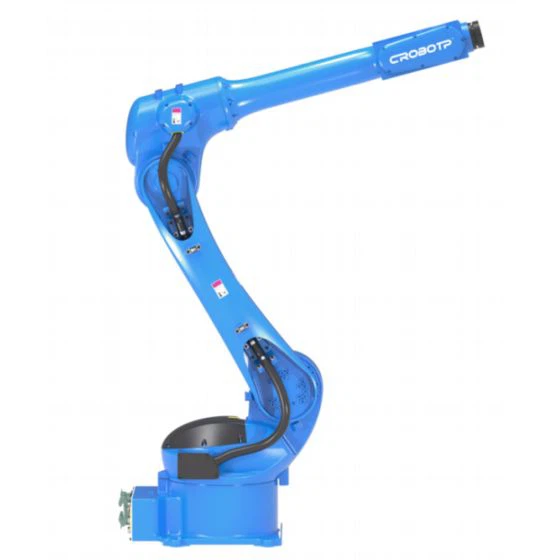

The CRP-RA15-12 is a highly flexible industrial robot designed for medium-load handling. With a 30kg rated load capacity and a flexible six-axis architecture, it easily handles complex tasks such as automotive parts transfer, heavy equipment assembly, and warehouse handling, redefining the efficiency standard for medium-load industrial handling.

● Strong payload and flexibility, delivering the best of both worlds.
The 30kg medium payload design meets the needs of handling medium-sized workpieces. Its six-axis flexible joints enable multi-angle grasping and placement in confined spaces. The slender wrist structure and high-rigidity arm ensure stable operation with heavy loads while enabling access to confined workstations, making it suitable for diverse applications such as automotive chassis assembly and mold handling.

● Compact and rugged design for rugged operation
The lightweight and compact design reduces footprint by 20% compared to comparable robots, making it suitable for densely packed production lines. Its IP67 protection rating and leak-proof structure protect against industrial dust, coolant, and moisture, ensuring continuous and stable operation in harsh working conditions such as welding workshops and foundries.

● Intelligent Drive, Precision and Efficiency
The latest PID control technology combined with a dynamic compensation algorithm achieves ±0.05mm repeatability, maintaining a stable trajectory even when handling eccentric loads. The high-speed motor increases cycle speed by 35%, and combined with gravity compensation, significantly shortens the handling cycle for medium-sized workpieces.

● Open expansion, customized on demand
Standardized mounting holes are reserved for the J2/J3/J4 axes, enabling quick integration of heavy-duty end-effectors such as vacuum cups and electromagnetic grippers. The J3 axis's I/O port and dual-circuit air tubing can be connected to the production line's PLC system, enabling customized automation of the entire "grasping, handling, and positioning" process.

● Safety redundancy, long-term reliability
An independent safety emergency stop panel and dual-circuit relay design trigger braking within 0.1 seconds in the event of an emergency. Combined with the collision detection system, it effectively protects the robot and peripheral equipment. A built-in three-phase filter enhances anti-interference capabilities, and key components are tested for 80,000 hours of lifespan, ensuring durability under high-intensity operation.

Installation Dimension of Base

Flange Dimensions
