Products Description
Designed for integration into industrial automation systems, the CRP-G11-CD60C-CRA9 combines robot control hardware with interfaces for peripheral equipment and communication networks.
Its cabinet dimensions, power requirements, and interface specifications help equipment designers assess installation and system-integration requirements before selecting a configuration.
Application Scenarios
Material Handling and Palletizing
For material-handling and palletizing systems built around supported CRP low-payload robots.
Automated Equipment Integration
For production equipment that requires robot control to connect with external devices through digital I/O, network, or serial interfaces.
Tracking and Vision Applications
The listed software functions include visual and tracking applications. Visual software, laser-tracking software, and arc tracking with related accessories are optional.

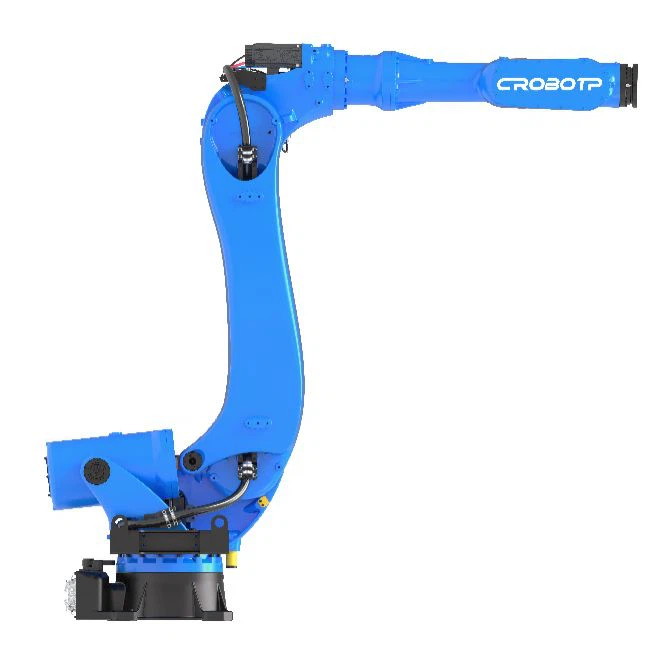

Robot Technical Specifications
General Robot Specifications
|
Parameter |
Specification |
|
Model |
CRP-RA32-150 |
|
Arm form |
Vertical multiple joints |
|
Degree of freedom |
6 axis |
|
Maximum payload |
150kg |
|
Maximum reaching distance |
3107mm |
|
Repeated positioning accuracy |
±0.06mm |
|
Robot body weight |
1272kg |
|
Installation mode |
Ground |
|
Noise level |
<80dB(A) |
|
Electric cabinet configuration |
G15A |
Axis Motion and Load Specifications
|
Axis |
Maximum Travel |
Maximum Speed |
Allowable Torque |
Allowable Moment of Inertia |
|
Axis 1 |
-180° to +180° |
105°/s |
/ |
/ |
|
Axis 2 |
-76° to +64° |
100°/s |
/ |
/ |
|
Axis 3 |
-74° to +100° |
100°/s |
/ |
/ |
|
Axis 4 |
-210° to +210° |
170°/s |
830 N·m |
85 kg·m² |
|
Axis 5 |
-125° to +125° |
170°/s |
830 N·m |
85 kg·m² |
|
Axis 6 |
-360° to +360° |
284°/s |
442 N·m |
45 kg·m² |
Interfaces and Operating Environment
|
Parameter |
Specification |
|
Reserved I/O |
26Pin |
|
Reserved gas connections |
2 × φ12mm |
|
Installation ambient temperature |
0–45°C |
|
Relative humidity |
38%–85% RH, no condensation |
|
Permitted vibration |
Under 0.5G |
|
Protection rating |
Robot body IP54; wrist IP67 |
|
Installation restrictions |
Keep away from flammable or corrosive liquids or gases and sources of electrical interference |
Application Scenarios
Material Loading and Unloading
Transfer workpieces between designated pickup and placement positions in a production cell. The required load, reach, approach angle, and clearance should be assessed for the planned transfer.
Cutting Operations
Move workpieces to or from cutting stations where the required handling sequence is compatible with the robot's motion range and the equipment layout.
Assembly and Component Transfer
Move components between process stations or assembly fixtures. Confirm the required approach directions, positioning needs, and gripper design during application planning.
Marking and Polishing
Move or orient workpieces for marking and polishing processes where the robot's reach and six-axis movement match the required tool path. Process tooling and application-specific requirements should be assessed separately.
Customization & Configuration Options
CRP publishes customization options for industrial robot systems, including cable lengths, teach pendants, electrical specifications, interface labels, and cabinet colors. The options below are company-level offerings; their availability for the CRP-G11-CD60C-CRA9 must be confirmed against the model's technical requirements.
Cables and Teach Pendant
• Interconnection cable: The listed standard length for this cabinet is 5 m. CRP also publishes 8 m, 10 m, 15 m, and custom-length options for its customization services.
• Teach pendant: This cabinet is specified with a C-type pendant. Model C and Model E appear among CRP's customization options.
• Teach pendant cable: CRP publishes 6 m, 8 m, 10 m, 12 m, and 15 m options, with other lengths available on request.
The standard 5 m interconnection cable and the pendant cable are listed separately. Confirm the required connection and cable length when specifying the system.
Electrical and Appearance Options
• Transformer power: CRP lists 3,000 W, 5,000 W, and 8,000 W options, with other specifications available on request. Applicability to this cabinet requires confirmation.
• Interface labels: English interface labeling is available through CRP's customization services; alternative labels may require additional design work.
• Cabinet color: CRP publishes several RAL color options, including RAL 5015 blue. Confirm whether a color change is supported for this model.
Information for a Configuration Request
To discuss a suitable configuration, provide:
• Robot model and required number of axes
• I/O list and communication protocols
• Required cable lengths and teach pendant preference
• Power requirements and installation conditions
• Any required optional software or appearance changes
Discuss Your Control Cabinet Requirements
Manufacturing & Quality Assurance
Manufacturing & R&D Resources
• Manufacturing Base: More than 30,000 m²
• Workforce: Over 300 employees
• Intellectual Property: More than 400 intellectual property rights, including over 40 invention patents
Quality Control
• Incoming Inspection: Checks on incoming materials
• Production & Assembly: Quality checks during manufacturing and assembly
• Pre-Shipment Inspection: Checks before products leave the factory
Industrial Robot Performance Testing
CRP's published factory information describes testing for industrial robot performance, including:
• Repeat-Positioning Accuracy
• Load-Operation Stability
Learn more CRP Quality Control


FAQ
Q: Which robot series is this control cabinet designed for?
A: The listed supported series is CRP six-axis low-payload robots. For compatibility with a specific robot model, provide its model number and required functions for technical assessment.
Q: Can the cabinet support an external axis?
A: The standard configuration supports six control axes. External-axis expansion is optional and should be included in the configuration requirements.
Q: Which communication protocols are available?
A: Modbus RTU and Modbus TCP are listed as supported protocols. PROFINET and CC-Link are listed as expandable options.
Q: Are vision, laser tracking, and arc tracking included as standard?
A: No. Visual software and laser-tracking software are listed as optional, as are arc-tracking functions and related accessories.
