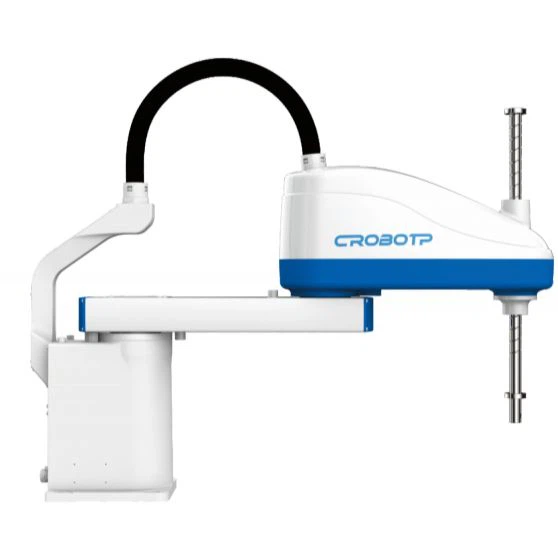

Scara Loading Handling Robot

Scara Loading Handling Robot

Details
Maximum payload: 20kg
Maximum reaching distance: 1000mm
Degree of freedom: 4axis
Category
Handling Robot
Share to
Send Inquiry
Description
Technical Parameters

Product Description



Scara Loading Handling Robot for Automated Material Transfer

The CRP-RS10-20Z40 Scara Loading Handling Robot is designed for automated loading, unloading, and material transfer across industrial production lines. Its four-axis horizontal articulated configuration provides a practical solution for moving workpieces between machines, conveyors, and processing stations, helping streamline repetitive handling operations and reduce manual intervention. It is well suited for applications including electronics assembly, precision parts handling, machine loading and unloading, and food packaging.





Advantages of CRP Scara Loading Handling Robot



Designed for automated loading and handling, the robot combines rigid motion, flexible configuration, reliable safety control, and convenient system integration.

High-Rigidity Arm for Stable High-Speed Handling

The high-rigidity arm structure supports fast and controlled movement during repetitive loading and handling tasks. Its rigid construction helps maintain transfer accuracy while limiting vibration and operating noise, supporting stable performance across continuous handling cycles.

Flexible Arm Configurations for Different Workstations

Available with 800 mm and 1000 mm arm options, the robot can be configured according to different workstation layouts and handling distances. Its load configuration also supports varied workpiece and tooling requirements across automated production applications.

Reliable Dual-Circuit Emergency Stop

An independent safety emergency stop board with a safety relay provides dual-circuit emergency stop functionality. This independent design enables reliable equipment shutdown during emergency conditions without relying solely on the main control system.

Multi-Interface Control for Easier Integration

The G12 control cabinet provides 24 customizable I/O channels together with serial, Ethernet, USB, and other interfaces. These connection options support communication with external equipment and provide flexibility when integrating the robot into automated production systems.

Flexible Cable with Enhanced Signal Protection

A dedicated flexible robot cable is designed to withstand repeated bending during continuous arm movement. Combined with a built-in three-phase filter, the system provides enhanced EMC/EMI protection for more stable signal transmission in automated production environments.

Adaptive Motion for Smoother Handling

Intelligent gravity compensation, load adaptation, and S-T curve optimization work together to adjust robot motion according to handling conditions. This helps reduce motion impact and supports smoother, more precise workpiece capture and transfer.





Technical Parameters



Robot Model

CRP-RS10-20Z40

Arm form

Quadriaxial horizontal joint

Installation method

Countertop /side wall mounting

Robot body weight

56KG

Maximum reaching distance

1000mm

Standard cycle time beat

0.49s

Payload

Rated load

10kg

Maximum load

20kg

Repeated positioning accuracy

Axis 1 - 2

±0.02mm

Axis 3

±0.01mm

Axis 4

±0.01°

Maximum travel

Axis 1

±142°

Axis 2

±160°

Axis 3

400mm

Axis 4

±360°

Max speed

Axis 1

10700mm/s

Axis 2

10700mm/s

Axis 3

1300mm/s

Axis 4

1400°/s

3rd axis downforce

200N

4th axis allowable moment of inertia

Rated load

0.05kg·m²

Maximum load

1kg·m²

Motor power

Axis 1

750W

Axis 2

500W

Axis 3

400W

Axis 4

200W

User interface

Circuitry

15Pin

Electricity

2 - Φ6mm,2 - Φ8mm withstand voltage: 0.59MPa

Installation environment

Ambient temperature

Standard type: 0 - 40℃

Others

Robot installation must be away from: flammable or corrosive liquids or gases, electrical sources of interference

Home point resetting

No need home point resetting

Electric Cabinet Configuration

G12

Advantage features

Compact structure, fast running speed, high repeated positioning accuracy, strong versatility and easy to operate

Application

Handling, sorting, loading and unloading, palletizing, soldering, dispensing, pad printing and other application scenarios



Diagram



Installation Interface Diagram



image 1



Model

CRP-RS10-20Z40

A=

600mm



Motion Range Diagram



image 2



Name/Model

CRP-RS10-20Z40

B Maximum safe range of motion

1080mm

C Effective range of motion

1000mm

D Radius of upper arm

600mm

E The maximum square size

754 - 1058mm

F Large rectangular square size

565 - 643mm

G Base safety distance

285mm





Customize CRP Scara Loading Handling Robot for Your Projects



We can adjust key configurations to better match your installation conditions, control requirements, and project specifications.



Interconnection Cable Length

The standard external interconnection cable is 5 m, with 8 m, 10 m, and 15 m options available. Custom cable lengths can also be provided for different equipment layouts.

Transformer Power

The built-in transformer is available in 3000W, 5000W, and 8000W configurations. Other transformer specifications can be provided upon request.

Teach Pendant

Choose between Model E and Model C teach pendants according to your preferred robot operation and programming configuration.

Teach Pendant Cable Length

Teach pendant cables are available in 6 m, 8 m, 10 m, 12 m, and 15 m lengths. Other cable lengths can be customized according to your installation requirements.

System Interface

The system can be supplied with an English interface using CRP screen labels. Alternative English interface labels are also available for projects with specific interface requirements.

Robot Color

Standard color options include blue, telecom gray, red, yellow ASD, yellow FLK, signal white, grass paper, and light gray. Other colors can also be customized, with a 45-day lead time.



Build Your Custom Robot





CRP Customization Process for Scara Loading Handling Robot



CRP manages each customized robot project through a structured process, from initial evaluation and design to production and final testing.

Each customized robot project is developed according to the customer's specific application and configuration requirements.

  • In-House Evaluation - Reviews workpiece, handling, layout, and technical requirements to define the project specifications.
  • Conceptual Design - Develops the robot configuration, tooling, interfaces, and installation arrangement for the application.
  • Raw Material Preparation - Prepares the mechanical, electrical, pneumatic, and other components required for production.
  • Mass Production - Manufactures and assembles the customized robot according to the approved design and production requirements.
  • Performance Testing - Tests robot motion, positioning accuracy, load handling, and customized functions against the specified requirements.
  • Automated Testing - Checks key robot functions and operating performance through standardized automated procedures.
  • Sample Completion - Completes final inspection and prepares the customized robot and relevant materials for delivery.
Mass Production
Mass Production





Quality Management of CRP Industrial Robots



CRP applies quality control throughout material inspection, precision verification, production testing, and final performance evaluation to maintain consistent robot quality before delivery.

  • Incoming Material Inspection - Checks hardness, dimensions, material composition, and appearance of incoming materials to verify that core components meet CRP quality requirements.
  • Three-Coordinate Inspection - Inspects robot body castings and machined parts for flatness, verticality, concentricity, hole spacing, and aperture before they enter production.
  • Digital Production Traceability - Uses QR-code identification after dimensional inspection to connect component data with the production process for traceable quality management.
  • Component Quality Control - Performs full inspection of core robot components and manages supplier quality to identify and trace potential batch-level issues.
  • Load Aging Testing - Conducts 24-hour maximum-load aging tests to evaluate robot operating stability under continuous load conditions before delivery.
  • Performance Testing - Tests positioning accuracy, noise, abnormal sounds, and electrical cabinet compatibility as part of the robot's final performance evaluation.
  • Final Quality Inspection - Carries out comprehensive inspections before shipment to verify robot performance and configuration according to the customer's order requirements.

These quality management processes provide traceable inspection and testing from incoming materials through final delivery, supporting consistent performance across CRP industrial robot products.

CRP Industrial Robotics Testing Center
CRP Industrial Robotics Testing Center





Why Choose CRP as Your Industrial Robot Manufacturer?



CRP combines robotics R&D, manufacturing, and technical expertise to support industrial automation projects.



Longstanding Industry Experience

CRP has been developing robot control systems since 2007 and established its robotics company in 2012. Its more than 35,000 m² industrial robot base covers R&D and production of industrial robots, controllers, drive and control systems, and other core components.



Proven Technical Expertise

CRP has more than 400 authorized intellectual property rights, including over 40 invention patents. Its technical capabilities cover robot control, drive systems, intelligent sensing, and complete industrial robot development.



Controlled Production and Quality Management

CRP manages key production processes for industrial robots and core components within its manufacturing system. This integrated approach supports consistency across robot assembly, component integration, testing, and final delivery.



Established Global Experience

CRP has served more than 500 clients worldwide, with its robots exported to Southeast Asia, India, Pakistan, Turkey, Europe, and Latin America. Its industrial robots are used across handling, welding, palletizing, spraying, polishing, and grinding applications.





Comprehensive Service Support from CRP for Your Robot Projects



CRP provides technical and service support from robot installation and training through long-term after-sales maintenance.

On-Site Technical Support

CRP provides on-site assistance when technical support is required during robot deployment.

On-site support includes:

• On-site robot inspection

• Installation guidance

• Commissioning support

• Technical troubleshooting

• On-site technical assistance



Robot Training Services

CRP provides training based on the customer's robot application and operational requirements.

Training includes:

• Robot product training

• Robot operation training

• Programming training

• Maintenance training

• On-site training support



Long-Term After-Sales Service

CRP provides ongoing support after the robot has been delivered and put into operation.

After-sales support includes:

• 2-year robot warranty

• Repair support for up to 5 years after product discontinuation

• Replacement support for up to 10 years

• Spare parts availability



Discuss Your Project





FAQ



Q: How should I choose between an 800mm and 1000mm arm length?

A: The 800mm arm length is suitable for compact production lines or short-distance handling (such as loading and unloading machine tools). The 1000mm arm length offers a wider reach and is suitable for applications spanning assembly line stations or where equipment is spaced far apart.

Q: Why is a dual-circuit emergency stop system safer?

A: The dual hardware circuit redundant design ensures an emergency stop even if a single circuit fails. The safety relay physically disconnects the power supply, completely eliminating the risk of software failure.

Q: What are the 24 custom I/O channels in the G12 control cabinet used for?

A: They can be connected to external devices such as rack sensors, conveyor trigger signals, and vision systems to achieve automated triggering and status feedback for the handling process.

Q: What are the advantages of flexible dedicated cables over ordinary cables?

A: They offer a lifespan of millions of repeated bends, and the shielding layer offers enhanced electromagnetic interference resistance. They are less susceptible to breakage and signal degradation over long-term use, reducing maintenance frequency.

Q: How does the intelligent gravity compensation function improve handling accuracy?

A: The system detects load weight in real time and automatically adjusts joint torque output to avoid positioning deviations or impact when grasping workpieces of varying weights.

Q: Is this robot suitable for clean environments (such as those used in the food and pharmaceutical industries)?

A: The low noise, low vibration and oil leakage-free design meets the basic cleanliness requirements, but if higher standards (such as a sterile environment) are required, a customized protective cover is required.
